TransformerCart T20 AC – Version
Charging cart for up to 20 laptops up to 15.6", charged via sockets.
Everything inside the TransformerCart T20 AC – Version.
Charging cart for up to 20 laptops up to 15.6", charged via sockets.
Up to
laptops at once
For your devices’ original adapters
Integrated. Suppresses a fire in 5 seconds or less.
Charge only, via integrated power sockets
For laptops up to 15.6", tablets and convertibles
Fire test: the integrated extinguisher triggers automatically and smothers the fire inside the cart.
TransformerCart T20 AC – Version
Charging cart for up to 20 laptops up to 15.6", charged via sockets.
- Charge only, via integrated power sockets
- For laptops up to 15.6", tablets and convertibles
- 4 smooth castors, 2 with brakes
- Key lock plus combination lock
- Succeeded by the T24X
- Available with integrated fire extinguisher
No checkout: you get a tailored quote, usually within one working day. Questions? +49 7321 488 781-0 · [email protected]
We will gladly send you the data sheet: Request data sheet ›
Tech specs
General data
| Dimensions (L × W × H) | 660 × 630 × 1050 mm |
|---|---|
| Weight | 58 kg |
| Max. compartment size | Length 410 × Width 36 × Height 268 mm |
| Material | Sheet steel + aluminium alloy + FR-ABS |
| Country of manufacture | China |
Safety & cooling

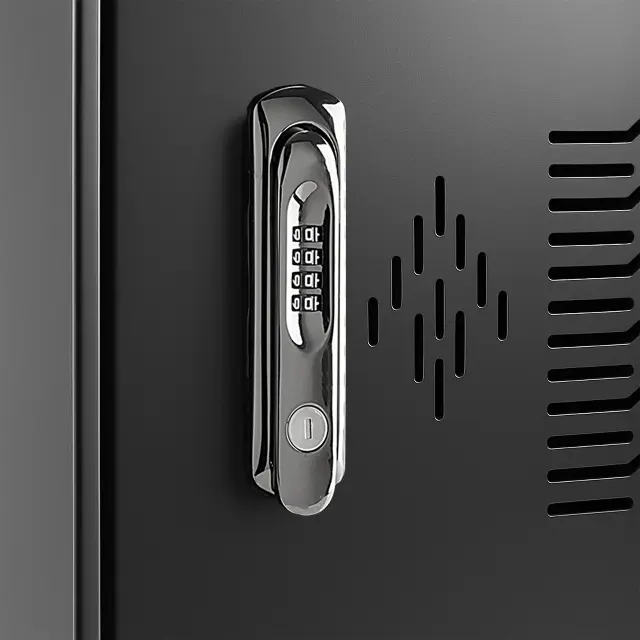

| Locking system | Dual locking system: key lock (keys included) + combination lock |
|---|---|
| Cooling | Active ventilation (4 fans); max. 31 dB(A), airflow 39 m³/h |
Charging functions
| LED charging indicator | No |
|---|---|
| Charging power | Integrated power strips (3 × 10-way) |
| Electrical output | 10 A – 100–240 V – 50/60 Hz – integrated on/off switch |

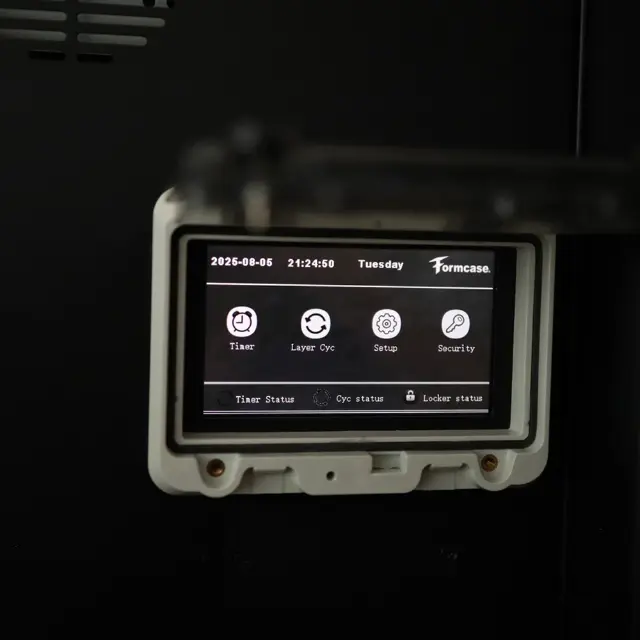

| Charging timer | Yes |
Data & synchronisation
| Synchronisation | No |
|---|
Transport & mounting
| Castors | 4 integrated smooth-running castors, 2 of them with wheel brake |
|---|---|
| Push handle | Integrated handle |
| Carrying handles | 2 side carrying handles for transport on stairs |
Compatibility & features
| Device compatibility | Apple iPads + Android tablets + Windows devices + macOS devices |
|---|---|
| Protective cases | For up to 20 laptops of max. 15.6″ incl. thick protective case |
| External connections | External: IEC power inlet |
| Internal connections | 30 × power outlets + integrated timer |
| Labelling | Yes |
| Cable management | Integrated cable management |
Scope of delivery & certifications
| Scope of delivery | 1 × power cable 2 m (country-specific), 1 × user manual, 2 × keys |
|---|---|
| Applied standards | DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN 50581 / DIN EN 62368-1 |
| Certificates | CE / RoHS / REACH |
| Warranty | 1-year manufacturer's warranty (extension optional) |
